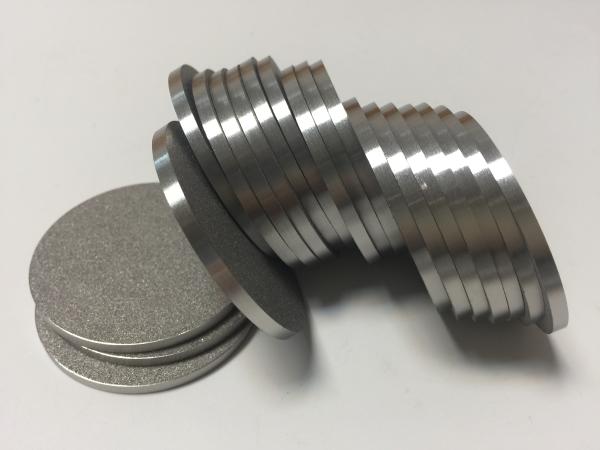

Porous Metal Explosion-proof FilterElement

https://www.toptitech.com/microporous-filter-components/porous-metal-explosion-proof-filter-element.html

Porous metal explosion-proof filter element is a filter made of metal powder sintering, which has the characteristics of explosion-proof, corrosion resistance, high temperature and high pressure. It adopts techniques such as molding and sintering to create a large number of small holes on the metal plate to form a metal mesh with filtering function. The size of these small holes can be determined according to actual needs, making it suitable for different filtration requirements.

The main raw material of porous metal explosion-proof filter elements is metal powder, such as stainless steel, copper, titanium, etc. These materials have good corrosion resistance and high temperature and high pressure performance, and can be used for a long time in harsh environments. At the same time, due to its special manufacturing process, the porous metal explosion-proof filter has high strength and toughness, and is not easily deformed and broken. Widely used in the filtration field of petroleum, chemical, pharmaceutical, food and other industries, it can be used for filtration and separation of various media such as gas, liquid and solid. At the same time, the explosion-proof performance of the porous metal explosion-proof filter can also be used in the filtration of some explosive places, reducing the risk of explosion caused by factors such as static electricity during the filtration process.

Product parameters

Brand: TOPTITECH

Origin:China

Size: Round: φ3-φ500mmSquare: 500*800mm(can be customized)

Thickness: 1.0-5.0mm

Accuracy: 10um, 20um, 40um

Operating temperature: 500°C

Operating pressure:0.2Mpa/cm2

Features

1. Strong explosion-proof performance: the porous metal explosion-proof disk has strong explosion-proof performance, which can effectively isolate the high temperature, high pressure and fragments generated by the explosion and reduce the hazard.

2. Good corrosion resistance and anti-corrosion performance: the surface of the porous metal explosion-proof disk has been specially treated, which has good corrosion resistance and anti-corrosion performance.

3. Good air permeability: The porous metal explosion-proof disk has many holes inside, which make it have good air permeability, and can prevent explosion caused by gas accumulation to a certain extent.

4. Good ductility: the porous metal explosion-proof disk has good ductility, and can be processed and bent according to needs.

Applications

Petrochemical industry: In the petrochemical industry, porous metal explosion-proof plates can not only be used for explosion-proof, heat insulation, shock absorption, etc. process safety and quality.

Military industry: In the military industry, porous metal explosion-proof sheets can be used for explosion-proof, heat insulation and shock absorption of missile silos, aircraft fuel tanks and other equipment.

Aerospace industry: In the aerospace industry, porous metal explosion-proof plates can be used for heat insulation and shock absorption of engine nozzles, gas turbines and other equipment.

Automation industry: In the automation industry, porous metal explosion-proof disks can be used for explosion-proof, heat insulation, shock absorption, etc. of electrical equipment, instruments and meters.

Pharmaceutical industry: Porous metal explosion-proof filters can be used for filtration and separation in the pharmaceutical industry to ensure the quality and safety of pharmaceuticals.

TopTiTech is one brand that has more than 11 years of experience in porous titanium materials, it has a QC team, a Sales team, and Research and Development team, and our company has passed the ISO 9001-2015 certification. We are a typical China supplier. We are professionally exporting under the standards of ASTM, GB, and AMS, as well as nonstandard porous titanium materials. Now we have gained close cooperation with clients from Korea, Iran, Europe, and America, and won good comments and suggestions from our users.
Our main products are Sintering Titanium Powder Filters, Titanium Sintered Filter Sheets, Titanium Fiber Felt, Titanium Foil, Titanium Anode, Titanium Aeration Head, Porous Sintered Titanium Filter Tubes, Stainless Steel Powder Sintered Filter Tubes, Stainless Steel Sintered Wire Mesh, and so on.
Our production also has been widely used in the Petrochemical industry, Aviation and Aerospace industry, Medical industry, Food industry, etc.
We appreciate your interest in our company very much and hope that our website will be helpful and informative to you. If you need more information, please contact our sales department.
Kindly please contact me, If you´re interested in our products. you can check it: at http://www.toptitech.com
